Outdoor Stainless Steel Gas-Powered Heat Pump Water Heater with Smart Features for Residential & Hotels Includes Storage Tank

Capacity : 10CMB

power source : Gas

storage / tankless : Storage

type : Gas Water Heaters

Brand Name : OEM

Place of Origin : Hubei, China

after-sales service provided : Field Maintenance and Repair Service

App-Controlled : No

application : Commercial, Hotel, Household, Outdoor

Housing Material : Stainless Steel

installation : Freestanding

Power (W) : 1500

private mold : No

warranty : 1 Year

Model Number : See details

voltage (v) : 220

Function : House Heating Cooling Hot Water

Refrigerant : R32

COP : 4.0~4.5

Certification : CE

Heat exchanger : High Efficient Heat Exchanger

Color : Color OEM

Water tank : Enameled Stainless Steel

Sound Level : 55dB

Power Supply : Electric

MOQ : 1

MOQ : 1 piece

Price : $1,740 / piece

Contact Now

Product Description

Heat Pump Water Heater for Commercial Hot Water

This heat pump functions in the same way as a heat pump with conventional refrigerants. By using as a refrigerant, the heat pump can operate much more efficiently in a high temperature range and performs more efficiently at low ambient temperatures.

Due to the maximum outlet temperature of 90°C, the heat pumps can be used for the production of domestic hot water. The heat pump in combination with buffer tanks can also be used to replace existing gas boilers for space heating. Existing central heating installations often require a minimum supply temperature of 80°C. The heat pumps are therefore an excellent device to make existing buildings more sustainable.

The heat pumps are suitable for collective heating in apartment buildings, small district heating systems, sanitary hot water production for swimming pools, sports accommodations, hotels and holiday parks. By combining the central heating system with hot water production, the Seasonal Performance Factor (SPF) becomes even better.

Specifications:

Power supply	3Ph/400V/50Hz + N + E
Max outlet temperature	90°C
Heating mode	Heating only
Rated current	67 A
Maximum starting current	155 A		pressure drop gas cooler		± 35-40 kPa
Maximum power input	39000 W
Refrigerant code	R744
Refrigerant charge	20 kg
Noise level	≤ 68 db(A)
Maximum starting current	155 A		pressure drop gas cooler		± 35-40 kPa
Water side connections	2 x 2"
Applicable ambient temperature	-25~+43 ºC
Casing material	Hot-dip galvanized sheet metal plate Finishing powder coating
Colour	Dark grey (RAL7043)
Dimensions	W2300xD2201xH2308 mm
Weight	1400 kg
TEST CONDITIONS:		NOMINAL		STANDARD
Ambient temperature		DB/WB: 7/6°C		DB/WB: 20/15°C
Inlet temperature		30°C		15°C
Outlet temperature:		80°C		60°C
Heating power		87300 W		140000 W
Power input		37400 W		38000 W
COP		2.34		3.68
Water flow:		1.55 m³/h		2.2 m³/h

FAQ

Q1: Can the product be shipped to my area?
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.
Q3: What about the lead time?
A3: 15 days for
Q2: How can I make payment?
A2:100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipment
Q4: What is the mode of transport?
A4: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.
Q5: what’s the warranty?
A5:12 years enhanced product warranty on materials and workmanship, 25 years linear power output warranty. More detail please refer to our limited warranty statement

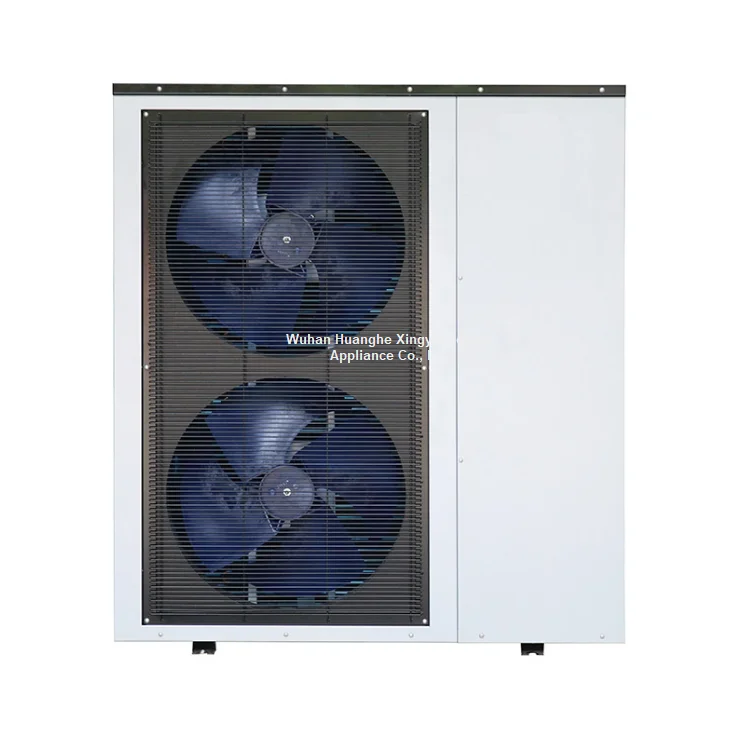

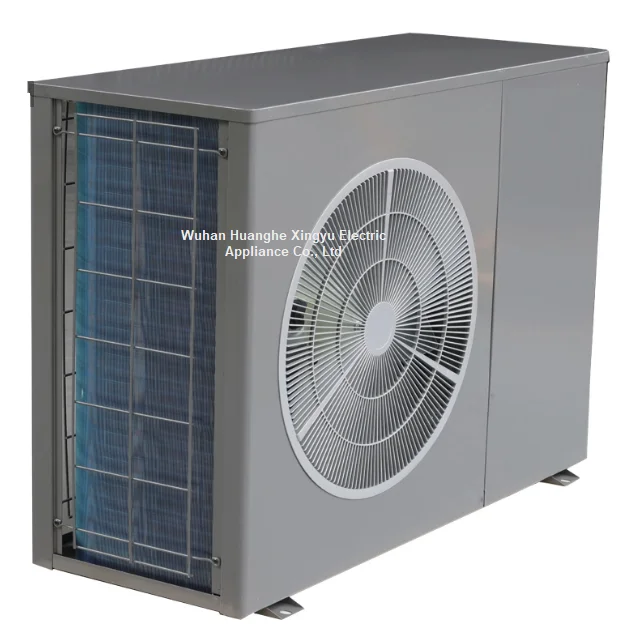

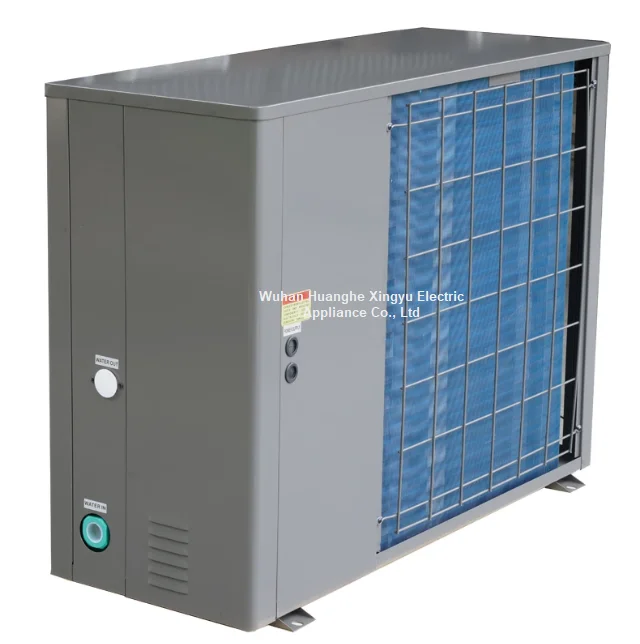

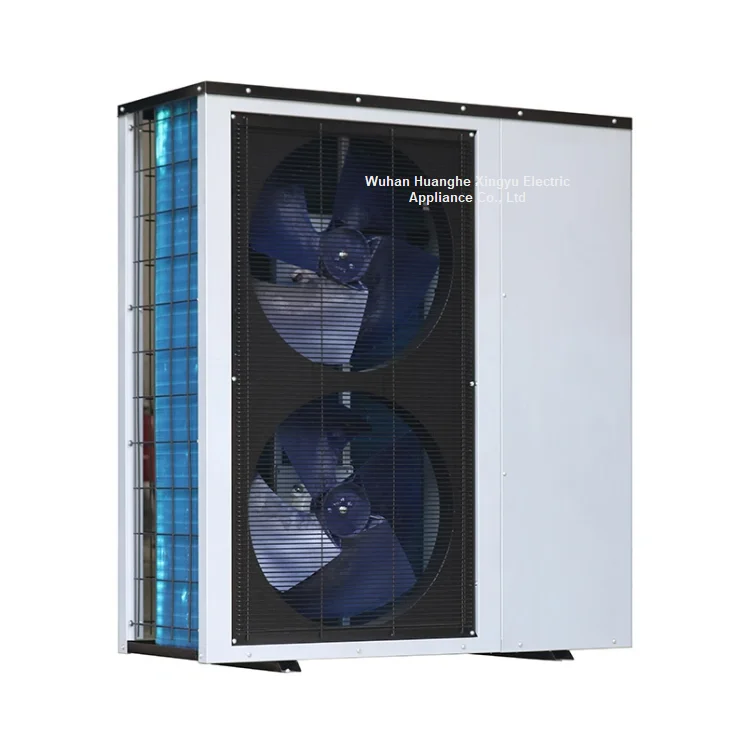

Outdoor Stainless Steel Gas-Powered Heat Pump Water Heater with Smart Features for Residential & Hotels Includes Storage Tank Images
